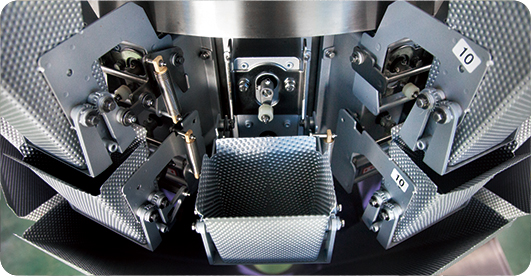

<ul id="ks4ce"></ul> <ul id="ks4ce"></ul> <ul id="ks4ce"></ul> Two layers screw feeding weigher is suitable for weighing mustard, pickles, small fish etc., which with poor flowability.
1. Special load cell with high precision and high standard.
2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.
3. Intelligent fault alarm, convenient for maintenance.
4. High speed staggered discharging function, effectively prevent blocking materials.
5. New highly integrated modular design, using CAN bus technology.
6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.
1. Two layers screw feeding scheme can control materials more precisely and is suitable for various viscous materials.
2. IP65 waterproof case is adopted, small dimple plate material is adopted for contact materials, and 60 degree feeding chute is used to make materials fall smoothly.
3. The scraper hopper can effectively solve the problem of material sticking on the hopper.
4. Double point material inspection is more accurate and effective to ontrol the thickness.
| Model | JW-A14 |
| Identify Code | A14-2-8 |
| Weighing Range | 10-200g |
| Accuracy | X(0.5) |
| Max Speed | 50P/M |
| Hopper Volume | 1L |
| Control Panel | 10.1”Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1750(L)x1130(w)x1590(H) |
| Gross Weight | 490kg |
